Introducing the Splunk App for Behavioral Profiling

Splunk is the platform for a million use cases, used to investigate operational data across security, observability, fraud, business intelligence and many other domains. But, in my time at Splunk, I’ve come to realize that all of our customers face challenges that stem from the same core problem:

Within exploding data volumes, finding the anomalously behaving entities that are most threatening to the resilience of their organization.

Introducing the Splunk App for Behavioral Profiling, a collection of workflows which enable you to operationalise detection and scoring of behavioral anomalies at scale in complex environments, correlated to profile and highlight the entities that are affecting resilience - designed to help:

• Fraud Teams tasked with locating increasingly sophisticated attackers that employ evolving methods across physical and digital channels to avoid simplistic detection rules.
• IT Operations supporting modern infrastructure, services and solutions comprising many disparate parts, any of which could be creeping towards an issue that compromises the resilience of the platform and brings the entire service down.
• Insider Threat Analysts attempting to hunt the unusual behaviors pointing towards criminal activity whilst grappling with inflexible solutions offering too little transparency and too much complexity for teams to tune to their operations.
• Platform Moderators chasing malicious users, posting abusive or illegal material, directly affecting revenue and customer sentiment without detection amid a marketplace of inapplicable solutions for bespoke platforms.

Background

First, some foundational terminology.

I’ve used the term entity several times, but what is an entity? Well, it’s anything - any mappable group of “things” within which you can compare and find anomalous behaviors. Examples include: customers, business units, employees, applications, servers, branches, etc.

Meanwhile, a behavioral anomaly is a deviation from expected behavior; either a difference between an entity and its peers, an entity and its historic behavior, or some combination of the two.

Operationalising behavioral anomaly detections at scale, and resolving back to the entities they relate to, has in the past been a complex task with Splunk. It required understanding and implementation of:

• Splunk’s Search Processing Language (SPL) to define a search
• Search scheduling to operationalise that search
• Machine learning and ML-SPL to define and interpret anomaly criteria

In addition, features such as summary indexing and KV storage need to be leveraged to truly scale anomaly searches to potentially millions of entities - something you can read more about in Josh Cowling’s excellent blog post.

The Splunk App for Behavioral Profiling comes to the rescue by orchestrating all of the above behind a simple click-through workflow, enabling you to deploy behavioral indicator searches with one line of SPL, and introducing a simple scoring mechanism to focus attention away from the false positives and towards the entities that truly matter.

Under the Hood

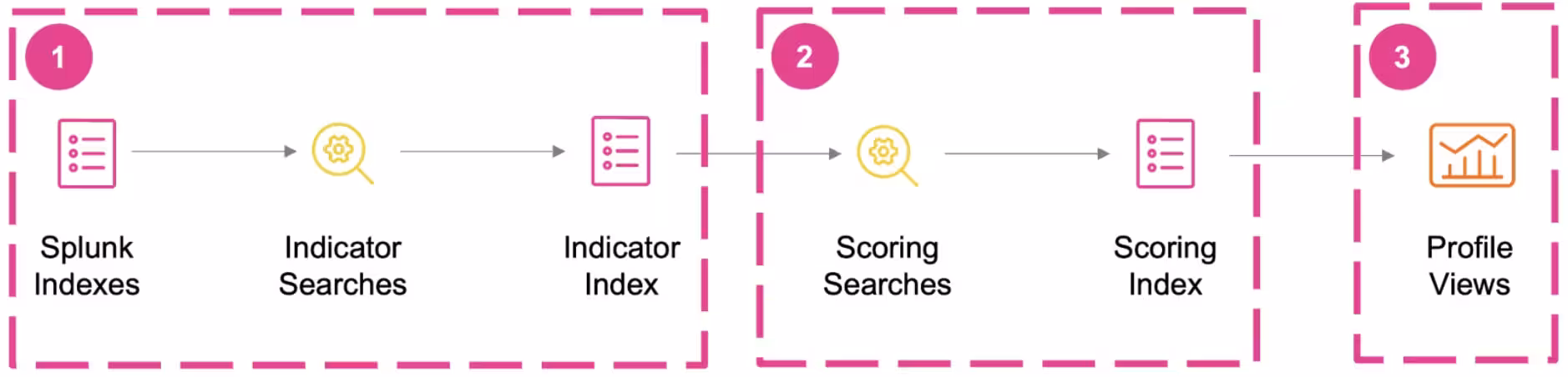

The app uses a three layer architecture to turn your raw data sources into behavior profiled entities:

1. First, indicator searches are deployed to track entity behaviors and output the metrics to the indicator index on a user-defined schedule.
2. This indicator index is then used as the feed for user-defined scoring rules, which leverage criteria ranging from simple conditional logic (i.e. indicator value > 5000) to machine learning based anomaly detection, enabling identification of the anomalously behaving entities and attribute dynamic scores in the scoring index.
3. The scoring index then populates a behavioral dashboard to display a list of entities that are prioritized by aggregated behavioral scores for investigation.

Deploy

Deploying an indicator search is as simple as pointing the workflow towards a dataset, selecting the field which represents the unique entity, and leveraging the dropdown menus to select a function to build the indicator metric you’ll be tracking (alternatively more advanced users can leverage SPL searches entirely). Once satisfied you can save, schedule and immediately backfill the search through the pop-up menu.

  _{Defining and saving a new indicator rule}

Scoring rules are then defined through the workflow using the data in the indicator index. Here you can choose from static conditional logic, standard deviation thresholding or anomaly detection powered by the Splunk Machine Learning Toolkit to define rules for determining anomalous behavior on either an entity by entity basis or across the entire group.

Once the anomaly criteria has been decided, you can simply define the scoring logic and again save, schedule and backfill the scoring rule.

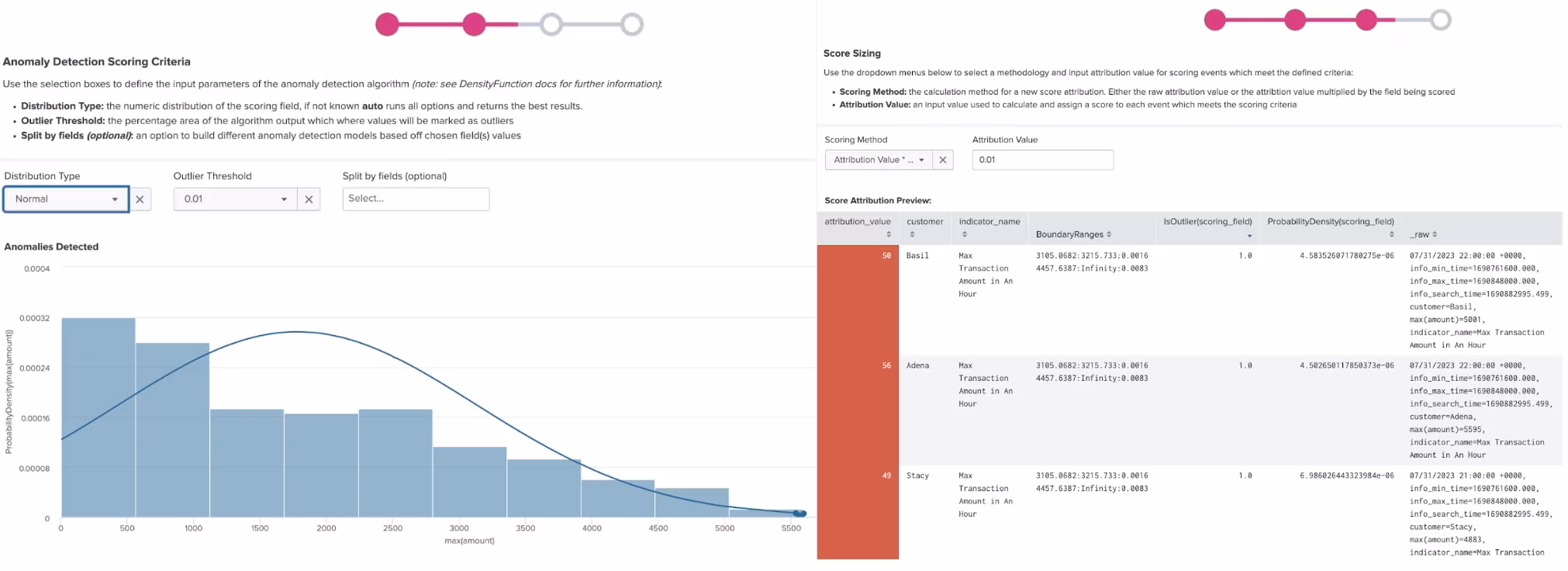

_{Defining the logic for determining and scoring the indicator search anomalies}

Investigate

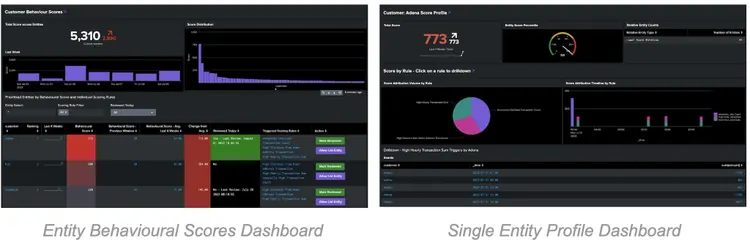

Once a scoring rule has been deployed, its attributions will immediately be aggregated with others to populate the Entity Behavioral Scores dashboard, which provides insight into the behavioral profile of your entities and a prioritized list of the most anomalous. Drilling down on an entity guides you to the Single Entity Profile view where you’ll see the history of an entity, its individual behavioral score attributions and the contributing raw events. From there, you can mark an entity as reviewed or add to an allow list to remove it from all underlying searches.

Maintain

Visibility into rule performance is critical to ensure your environment continues to identify the most critical entities. Therefore, the app also provides several views to ensure you can identify where rules have drifted or run into performance issues.

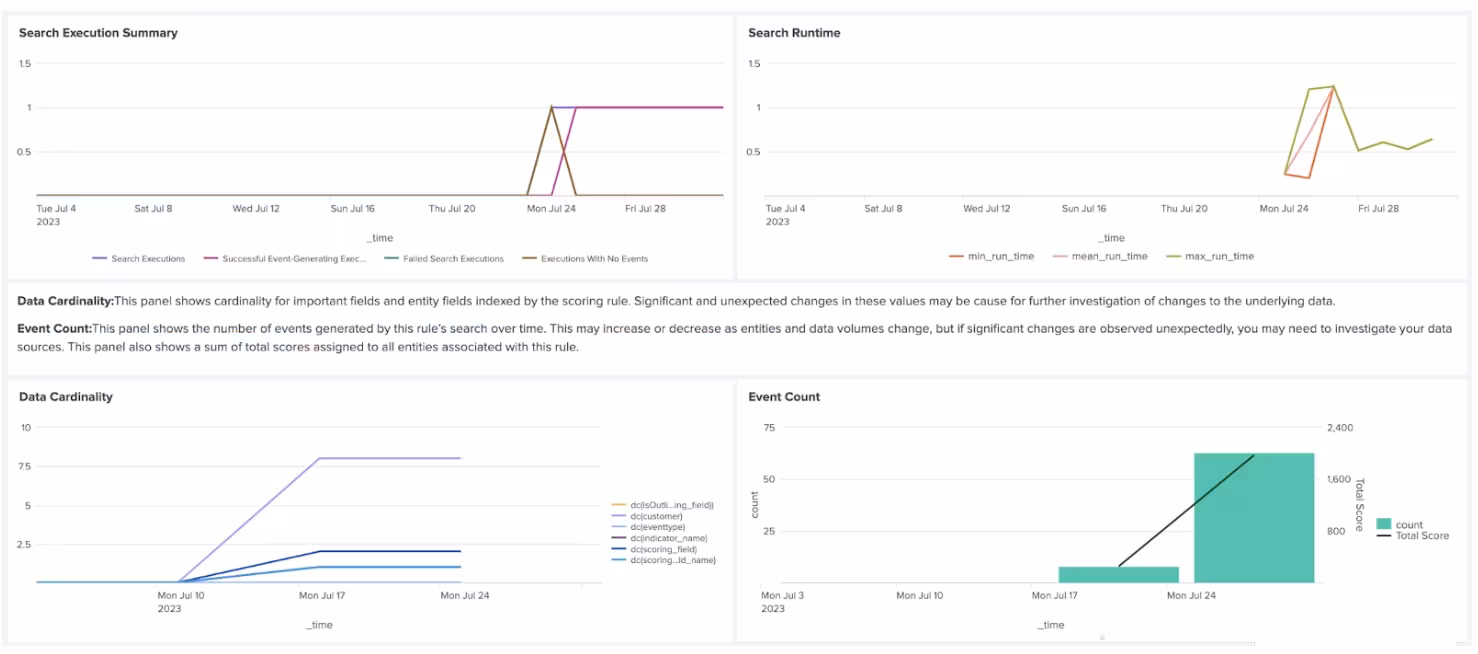

_{Review Scoring Rules Dashboard}

The Entity Behavior Scores dashboard contains information on the volume and scoring attributions contributed by each rule triggered, to guide where rules should be tuned. Meanwhile the Review Indicators and Review Scoring Rules dashboards provide operational context into the number of events returned and search performance from your deployed searches over time.

Get Started Today!

If you want to get started finding the entities behaving most anomalously in your environment, the Splunk App for Behavior Profiling is available today for download from Splunkbase for both Splunk Enterprise/Cloud customers with supporting documentation and video demonstrations for fraud and service monitoring use cases available.

Thank you, and happy profiling!

Special thanks to Josh Cowling, my co-developer on this app, for his vital support and to all the Splunkers and customers who’ve shaped the app’s development.
