Fantastic IIS Modules and How to Find Them

Internet Information Services (IIS) is a commonly used web server produced by Microsoft to assist organizations of all sizes to host content publicly or internally, including on premise SharePoint or Exchange. IIS modules are like building blocks, modules may be added to the server in order to provide the desired functionality for applications. Installation is done by using one of three methods on Windows - The IIS interface, AppCmd.exe and PowerShell New-WebGlobalModule.

Microsoft published two blogs in 2022 (July and December) detailing  how adversaries will persist with IIS modules and how to detect them. In parallel, CrowdStrike has been tracking a campaign since 2021, dubbed IceApple, that has evolved over the years by installing multiple modules to perform different post-exploitation functions.

Defenders need to understand how to monitor for IIS modules, identify suspicious command execution, track suspicious DLLs on disk and quickly respond. This blog showcases how to enable and ingest IIS operational logs, utilize PowerShell scripted inputs to ingest installed modules and simulate AppCmd and PowerShell adding new IIS modules and disable HTTP logging using Atomic Red Team. We also share analytics created by the Splunk Threat Research Team (STRT) to identify suspicious IIS component activity.

IIS Modules

There are two types of IIS modules, which we break down here to better understand how IIS operates with each.

The first type of IIS modules is a native module. A native module is typically going to be a DLL deployed to the server and loaded up via IIS Administration Tool, PowerShell or AppCmd. Per Microsoft, all three of these installation methods result in the module entry being added to the <globalModules> IIS configuration section, which can be set only at the server level. To examine the contents of this section, open the root configuration file located in %windir%\system32\inetsrv\config\applicationhost.config, and search for the string "<globalModules>".

The second type of IIS modules is managed modules. Per Microsoft, a managed module does not require installation and can be enabled directly for each application. This allows applications to include their managed modules directly within the application by registering them in the application's web.config file, and providing the implementation in /BIN or /App_Code directories.

All three of these options add the module entry to the <modules> IIS configuration section, which can be set at both the server level and application level. Examine the contents of this section by opening the root configuration file located in %windir%\system32\inetsrv\config\applicationhost.config, and search for the string "<modules>".

Microsoft provides three methods to manage modules:

IIS Manager

The IIS Manager application allows for easy adding and removing of both managed and native modules.

AppCmd.exe

AppCmd by default is found in %windir%\system32\inetsrv\. AppCmd.exe provides all sorts of functionality to manage IIS, but for this blog we focus on listing, adding and removing modules.

To list modules:

%windir%\system32\inetsrv\appcmd.exe list modules

Add a module:

%windir%\system32\inetsrv\appcmd.exe install module /name:DefaultDocumentModule_round2 /image:%windir%\system32\inetsrv\defdoc.dll

Uninstall a module:

%windir%\system32\inetsrv\appcmd.exe uninstall module DefaultDocumentModule

PowerShell

Similar to AppCmd, PowerShell has cmdlets that can be used to do similar functions.

To list modules:

Get-WebGlobalModule

Add new module:

New-WebGlobalModule -Name DefaultDocumentModule_Atomic2 -Image %windir%\system32\inetsrv\defdoc.dll

Uninstall module:

Remove-WebGlobalModule -Name DefaultDocumentModule_Atomic2

Next, we focus on getting additional IIS logs and collecting modules.

Enable IIS Logging and Collect Modules

In their latest blog, Microsoft recommends enabling advanced IIS logging to hunt for web shells. The Microsoft-IIS-Configuration/Operational log provides details on new modules being added by site/app pool.

• Lists additional logs available for IIS: `wevtutil el | findstr -i IIS`
• Configuration for the selected log: `wevtutil gl Microsoft-IIS-Configuration/Operational`
• Enable the selected log: `wevtutil sl /e:true Microsoft-IIS-Configuration/Operational`

Once enabled, we will need to add the following to an inputs.conf to be collected:

[WinEventLog://Microsoft-IIS-Configuration/Operational]
index=win
sourcetype=IIS:Configuration:Operational
disabled = false

The collected data in Splunk may look like the following:

^{Splunk 2023, figure 1}

The advanced IIS logging is a great source, however, another method we can use with Splunk Universal Forwarders is PowerShell scripted inputs. In this instance, we want to gather all installed modules on our IIS server fleet. As outlined here, we can pass a script or command via inputs.conf and the output will be ingested into Splunk. Deploy the new inputs.conf matching your environment to ingest modules. Modify the scheduled time to meet your needs.

[powershell://IISModules]
script = Get-WebGlobalModule
schedule = */1 * * * *
#schedule = 0 0 * * *
sourcetype = Pwsh:InstalledIISModules
index=iis

In Splunk we see:

^{Splunk 2023, figure 2}

Note the last 3 modules in a non-standard path.

Now that we have configured IIS logging and inventoried modules in Splunk, we will dive into how to simulate adversary techniques using Atomic Red Team.

Atomic Testing

The following three Atomic tests assist defenders in simulating and identifying 3 suspect behaviors related to adding new modules and disabling HTTP logging.

Simulate

T1505.004 -testnumbers 1

This Atomic test simulates adding a IIS module using AppCmd.exe.

T1505.004 -testnumbers 2

This Atomic test simulates adding a new module using PowerShell New-WebGlobalModule cmdlet.

Now we switch gears to disabling HTTP logging.

T1562.002 -testnumber 1

This Atomic test utilizes AppCmd.exe to disable HTTP logging on IIS.

T1562.002 -testnumber 2

This Atomic test utilizes PowerShell cmdlet set-WebConfigurationProperty to disable HTTP logging.

Now that we have simulated adversary tradecraft using AppCmd and PowerShell cmdlets for adding IIS modules or disabling HTTP logging, we can showcase some additional hunts and the security content that assists defenders in identifying this Atomic testing.

Additional IIS Hunts

When a new module is added to IIS, it will load into w3wp.exe (IIS process). We may utilize an EDR product or Sysmon to look at all modules being loaded by w3wp.exe.

All modules loaded

`sysmon` EventCode=7 parent_process_name=w3wp.exe | stats values(ImageLoaded)

^{Splunk 2023, figure 3}

There is a pattern to normal modules being loaded. It is possible to filter out the most common paths to limit the amount of volume. Note that collecting module loads is intensive and sometimes does not provide high value.

`sysmon` EventCode=7 parent_process_name=w3wp.exe NOT (process_path IN ("*\\inetsrv\\*", "*\\windows\\system32\\*")) | stats values(ImageLoaded)

^{Splunk 2023, figure 4}

While testing out different ways to load a module, we received an error when the module wasn’t correctly formatted or made to load properly into IIS. This generated event code 2282, which occurs when a module fails to load into the IIS worker process.

Security Content

The following analytics were produced to assist defenders in utilizing multiple log sources to identify suspicious and malicious behavior on IIS web servers.

Data sources:

• PowerShell Script Block Logging - 4104
• Windows Sysmon, process monitoring
• Microsoft-IIS-Configuration/Operational
• Windows Application
• PowerShell Scripted Input - Get-WebGlobalModule

Windows Disable Windows Event Logging Disable HTTP Logging

Identifies the use of AppCmd.exe to disable HTTP logging.

| tstats `security_content_summariesonly` count min(_time) as firstTime max(_time)
as lastTime from datamodel=Endpoint.Processes where NOT (Processes.parent_process_name IN ("msiexec.exe", "iissetup.exe")) Processes.process_name=appcmd.exe
Processes.process IN ("*set config*", "*httplogging*","*dontlog:true*") by Processes.dest Processes.user Processes.parent_process_name Processes.process_name Processes.original_file_name
Processes.process Processes.process_id Processes.parent_process_id
| `drop_dm_object_name(Processes)`
| `security_content_ctime(firstTime)`
| `security_content_ctime(lastTime)`

^{Splunk 2023, figure 5}

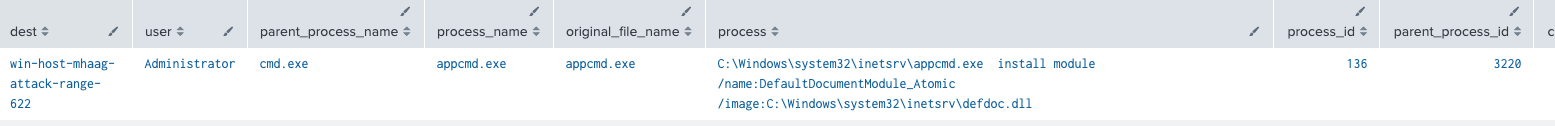

Windows IIS Components Add New Module

Identifies AppCmd.exe adding a new module.

| tstats `security_content_summariesonly` count min(_time) as firstTime max(_time)
as lastTime from datamodel=Endpoint.Processes where NOT (Processes.parent_process_name IN ("msiexec.exe", "iissetup.exe")) Processes.process_name=appcmd.exe
Processes.process IN ("*install *", "*module *") AND Processes.process="*image*" by Processes.dest Processes.user Processes.parent_process_name Processes.process_name Processes.original_file_name
Processes.process Processes.process_id Processes.parent_process_id
| `drop_dm_object_name(Processes)`
| `security_content_ctime(firstTime)`
| `security_content_ctime(lastTime)`

^{Splunk 2023, figure 6}

Windows IIS Components Get-WebGlobalModule Module Query

Using PowerShell scripted inputs, gathers all installed IIS modules and outputs to Splunk.

`iis_get_webglobalmodule` | stats count min(_time) as firstTime max(_time) as lastTime by host name image | rename host as dest | `security_content_ctime(firstTime)` | `security_content_ctime(lastTime)`

^{Splunk 2023, figure 7}

Windows IIS Components Module Failed to Load

When a module fails to load, it generates Event ID 2282.

`wineventlog_application` EventCode=2282 | stats count min(_time) as firstTime max(_time) as lastTime by EventCode dest Name ModuleDll | `security_content_ctime(firstTime)` | `security_content_ctime(lastTime)`

^{Splunk 2023, figure 8}

Windows IIS Components New Module Added

Utilizing EventCode 29 from the IIS Operational logs, identifies new modules installed.

`iis_operational_logs` EventCode=29
| stats count min(_time) as firstTime max(_time) as lastTime by OpCode EventCode ComputerName Message | rename ComputerName AS dest | `security_content_ctime(firstTime)` | `security_content_ctime(lastTime)`

^{Splunk 2023, figure 9}

Windows PowerShell Disable HTTP Logging

Utilizing PowerShell Script Block Logging, identifies when HTTP logging is disabled.

`powershell` EventCode=4104 ScriptBlockText IN("*get-WebConfigurationProperty*","*Set-ItemProperty*") AND ScriptBlockText IN ("*httpLogging*","*Logfile.enabled*") AND ScriptBlockText IN ("*dontLog*", "*false*") | stats count min(_time) as firstTime max(_time) as lastTime by EventCode ScriptBlockText Computer user_id
| `security_content_ctime(firstTime)`
| `security_content_ctime(lastTime)`

^{Splunk 2023, figure 10}

Windows PowerShell IIS Components WebGlobalModule Usage

Utilizing PowerShell Script Block Logging, identifies the use of a new module being added, enabled or modified.

`powershell` EventCode=4104 ScriptBlockText IN("*New-WebGlobalModule*","*Enable-WebGlobalModule*","*Set-WebGlobalModule*")
| stats count min(_time) as firstTime max(_time) as lastTime by EventCode ScriptBlockText Computer user_id
| `security_content_ctime(firstTime)`
| `security_content_ctime(lastTime)`

^{Splunk 2023, figure 11}

In closing, we covered adversaries using IIS modules to persist and perform post-exploitation, we focused on capturing new log sources from IIS and using PowerShell to gather IIS modules and we showcased Atomic testing to assist defenders in simulating these attacks. Last, the Splunk Threat Research Team developed 7 new analytics spanning 5 different data sources to help organizations of all sizes identify suspicious activity. The content may be obtained from ESCU or SSE.

References

• https://www.microsoft.com/en-us/security/blog/2022/12/12/iis-modules-the-evolution-of-web-shells-and-how-to-detect-them/
• https://www.crowdstrike.com/wp-content/uploads/2022/05/crowdstrike-iceapple-a-novel-internet-information-services-post-exploitation-framework-1.pdf
• https://unit42.paloaltonetworks.com/unit42-oilrig-uses-rgdoor-iis-backdoor-targets-middle-east/
• https://www.secureworks.com/research/bronze-union
• https://strontic.github.io/xcyclopedia/library/appcmd.exe-055B2B09409F980BF9B5A3969D01E5B2.html
• https://www.microsoft.com/en-us/security/blog/2022/07/26/malicious-iis-extensions-quietly-open-persistent-backdoors-into-servers/
• https://learn.microsoft.com/en-us/powershell/module/webadministration/set-webglobalmodule?view=windowsserver2022-ps
