Ingest Netcool Alerts into Splunk ITSI Event Analytics

This document describes the steps to ingest IBM Tivoli Netcool/OMNIbus alerts into Splunk IT Service Intelligence (ITSI) Notable Events Review. This is a great way to test run the machine learning capabilities available for managing your events in Splunk ITSI. Depending on the size of your environment please evaluate where to use and contact your Splunk account manager before getting this up and running.

Note: Before integrating these systems, ensure that there is an adequate flow of events into your Netcool instance. If you perform the integration on a Netcool test system, there should be a minimum of 3-5 events flowing in per minute.

Configuration time: 20 minutes
Requirements: IT Service Intelligence 2.6 or 3.0.x, IBM Tivoli Netcool/OMNIbus 7.4 or 8

Netcool Setup
Perform a backup of your Netcool ObjectServer before making modifications.

Import the Netcool ITSI Integration Script

Perform the following steps on the Netcool ObjectServer.

1. Download the integration script.

2. Run  nco_sql  and process the integration script:

/opt/IBM/tivoli/netcool/omnibus/bin/nco_sql -server <NCOMS server>  -user <user>

-password <password>  <itsi.sql>

The script imports the required trigger group, trigger, and procedure and makes them available in Netcool.

3. Optionally, change the following fields:

• - ObjectServer IP address (currently set to 10.199.228.164)
• - Netcool Unix user or group (currently set to 29000)
• - Include additional fields. For example, you might want to bring in custom fields for that Netcool implementation.
• - If you are running IBM’s impact component you might want to adjust the actual trigger statement (for example, trigger after impact has been completed).

Import the Netcool ITSI Perl Script

4. Download the integration script and place it in the folder /opt/IBM/Tivoli/Netcool/omnibus/itsi/itsi_integration.pl.

5. Adjust the HEC server name and HEC token in the script:

    my $logfile = "/tmp/itsi_integration.log"; my $token = "6A6E2442-7EAB-1C99-B71D-B8E7F78BA6B3";

    my $splunkHEC = "https://splunkservername:8088/services/collector/event";

You can either post events directly to ITSI Notable Events Review or into any other index by creating a new HEC token endpoint.

Note: You can only enrich the data in Splunk (e.g. combine it with CMDB information) when you send the events into an index first and then enrich them via a correlation search.

ITSI Setup

6. Import the notable event aggregation policy into Splunk.

    a. Download the backup zip file (netcoolpackage.zip).

    b. Restore the aggregation policy on the ITSI server via the kvstore_to_json.py command line utility. When prompted for the version of the backup, enter 2.6.

Validate the Integration

7. Open the OMNIbus Administrator Suite.

8. Check your OMNIbus trigger group (validate that you have a splunk_trigger that is enabled).

9. Check your OMNIbus trigger (validate you have an itsi_integration trigger that is enabled).

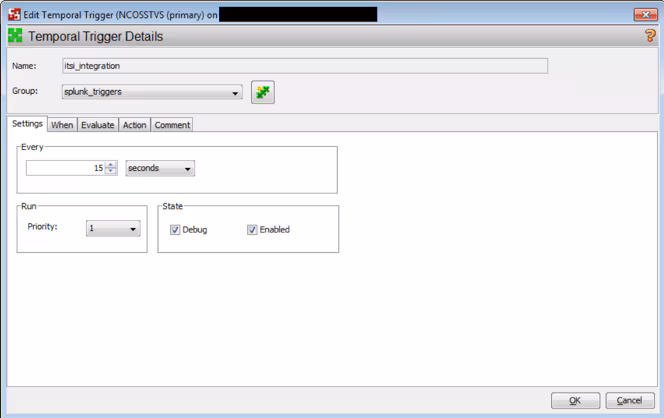

10. Adjust the temporal trigger details. For example, you might only send data to Splunk after Netcool has enriched the data or after the impact policy completes and an impact status is set.

11. Adjust the Netcool User and Group ID in the procedure details.

Note: You can change the list of fields that are sent to ITSI in the Arguments section. The integration script immediately picks up the field list.

Test the Integration

12. Validate and inspect the integration log.

tail -10 /tmp/itsi_integration.log

/usr/bin/curl -k https://servername:8088/services/collector/event -H "Authorization:
Splunk 6A6E2442-7EAB-4C99-B71D-B8E7F78BA6B3" -d
    '{"event" :
     {"event_id" : "8b527c3d-9752-4a22-81b2-e7dbb5bed464",
        "title":"Probe Status",
        "host": "hostname05",
        "description":"Probe Heartbeat ... ( Probe: tivoli_eif, Host: hostname05, ObjectServer: )",
        "incident_number":"",
        "severname":"NCOSSTA",
        "identifier":"hostname05 Probe: tivoli_eif, Host: hostname05,
        ObjectServer: Probe Status OmniBus-ProbeWatch ProbeWatch Heartbeat ...",
        "alertkey":"Probe: tivoli_eif, Host: hostname05, ObjectServer: ",
        "severity": 3 ,
        "firstoccurrence": 1506614393 ,
        "lastoccurrence": 1508420053 ,
        "status": 0 ,
        "serverserial": 5094510}}'

You should see an entry similar to this in itsi_integration.log:

  % Total    % Received % Xferd  Average Speed   Time    Time     Time  Current

                                 Dload  Upload   Total   Spent    Left  Speed

  0    27    0    27    0     0    738      0 --:--:-- --:--:-- --:--:-- 27000

{"text":"Success","code":0}-------------------
